| INDEX | PART NO. | DESCRIPTION | QTY |
| 4 | 60150678 | Cover Spool 0522 | 1 |
| 5 | 60100505 | 1152 Spring Cover | 9 |
| 6 | 60100506 | Spring Cover | 2 hent |
| 7 | 60100507 | Spring Cover | 2 |
| 8 | 60008789 | Cover | 6 |
| 9 | 60008790 | Cover | 1 |
| 10 | 60100469 | Cover | 1 |
| 11 | 60100509 | Piston | 1 |
| 12 | 60100468 | Plug | 1 |
| 13 | 60100466 | Plug | 1 |
| 14 | 60100514 | O-ring | 11 |
| 15 | 60008821 | O-ring | 2 |
| 16 | 60050051 | O-ring | 9 |
| 17 | 60008721 | Socket Head Cap Screw | 44 |
| 18 | 60150691 | Sub-AssY Travel Spool | 1 |
| 19 | 60150682 | Sub-AssY Arm1 Spool | 1 |
| 20 | 60150680 | Sub-AssY Boom1 Spool | 1 hel |
| 21 | 60221775 | Spool bucket | 1 |
| 22 | 60150685 | Spool Swing | 1 |
| 23 | 60150683 | Spool Arm2 | 1 |
| 24 | 60150681 | Spool Boom2 | 1 |
| 25 | 60150689 | Sub-AssY Straight Travel Spool | 1 |
| 26 | 60100473 | Spare Spool | 1 |
| 27 | 60150687 | Spool Bypass-Cut | 2 |
| 28 | 60150686 | Spool Swing Priority | 1 |
| 29 | 60150688 | Spool Travel | 1 |
| 46 | 60008711 | Plug | 4 |
| 47 | 60100489 | Assy port relief valve | 2 |
| 48 | 60008713 | Plug new | 6 wen |
| 49 | 60100465 | Plug | 2 |
| 50 | 60008717 | Bolt | 8 |
| 51 | 60008697 | O-ring | 4 |
| 52 | 60008722 | Rivet | 2 |
| 53 | 60008700 | O-ring | 7 |
| 54 | 60100511 | Label | 1 |
| 55 | 60100516 | O-ring | 2 |
| 56 | 60008781 | Flange | 2 |
| 57 | 60100494 | Logic Valve | 1 |
| 58 | 60221776 | Logic Valve | 1 |
| 59 | 60100484 | Stick Regeneration Valve | 1 |
| 60 | 60008783 | Check Valve | 8 |
| 61 | 60008817 | Spring 115 | 10 |
| 62 | 60100491 | Assy port relief valve | 6 |
| 63 | 60008705 | O-ring | 17 |
| 64 | 60100467 | Plug | 3 |
| 65 | 60008712 | Plug 09 | 、3 |
| 66 | 60100492 | Throttle Valve | new 3 |
| 67 | 60008728 | Set Screw | 5 |
| 68 | 60008820 | Plug | 3 |
| 69 | 60150690 | AssY Main Relief Valve | 1 |
| 70 | 60105087 | BP VALVE SPOOL | 1 |
| 71 | 60008696 | O-ring | 1 |
| 72 | 60008708 | O-ring | 4 |

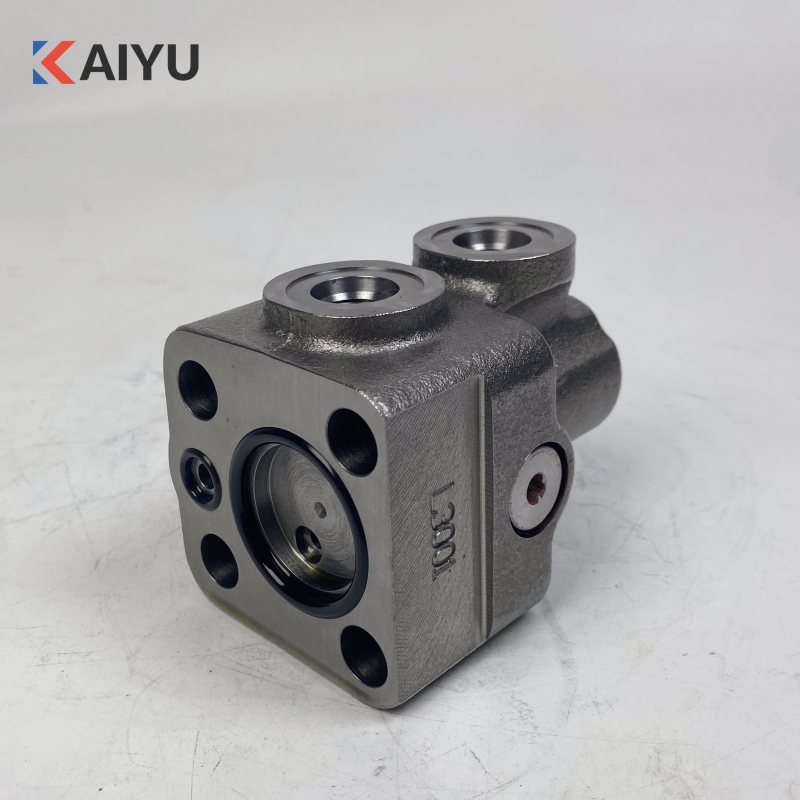

| 73 | 60105086 | BP VALVE BODY | 1 |
| 74 | 60100493 | Control Valve Assembly | 2 |
| 75 | 60038108 | Poppet Valve | 2 |
| 76 | 60008784 | Check Valve 09 | 2 |
| 77 | 60100475 | Check Valve | 2 |
| 78 | 60008703 | O-ring 52 | 2 |
| 79 | 60100504 | 1152 Spring | |
| 80 | 60008765 | Spring | 2 |
| 81 | 60075545 | Ball | 1 |
| 82 | 60075575 | Throttle Valve | 1 |
| 83 | 60075592 | Spring | 1 |
| 84 | 60008714 | Plug | 1 |
| 85 | 60008715 | Plug | 11 |
| 86 | 60008779 | Plug | 2 |
| 87 | 60038656 | Oil Plug | 2 |
| 94 | 60204226 | Multi-way valve repairing bag | 1 |
