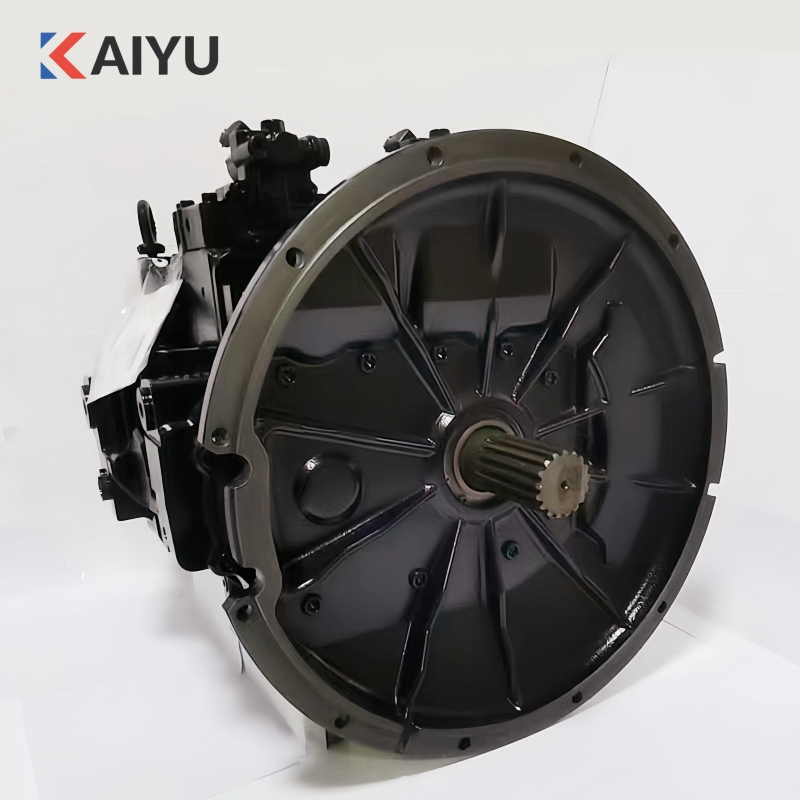

USE FOR: SANY SY485 SY500 excavator hydraulic pump

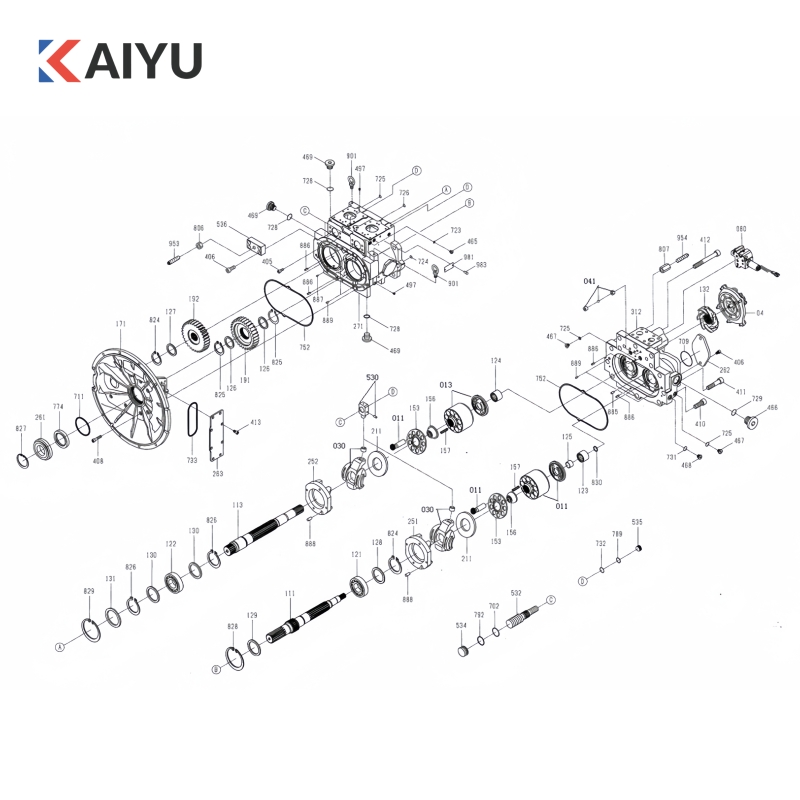

| NO. | NAME | Part NO. | QTY |
| hydraulic pump/HP3V212DPHRF1/F1S7B1NGM | 60355586,150108020024A | 1 | |
| 4 | Gear Pump | 60319636 | 1 |
| 11 | ASSY piston | 60319630 | 2 |
| 13 | ASSY ccylinder (R) | 60319631 | 1 |
| 14 | ASSY ccylinder (L) | 60319632 | 1 |
| 30 | ASSY swash plate | 60319633 | 2 |
| 41 | ASSY check valve 1 | 60319634 | 2 |
| 80 | Valve, reducing, proportional | 60081917 | 2 |
| 111 | Shaft drive | 60319566 | 1 |
| 113 | Shaft driven | 60319567 | 1 |
| 121 | Bearing roller | 60319569 | 1 |
| 122 | Bearing roller | 60319570 | 1 |
| 123 | Bearing needle | 60319571 | 1 |
| 124 | Bearing needle | 60319572 | 1 |
| 125 | Ring inner | 60319573 | 1 |
| 126 | Spacer | 60319574 | 2 |
| 127 | Spacer | 60319575 | 1 |
| 128 | Spacer bearing | 60319576 | 1 |
| 129 | Spacer ,bearing | 60319577 | 1 |
| 130 | Spacer bearing | 60319578 | 2 |
| 131 | Spacer bearing | 60319579 | 1 |
| 132 | Booster | 60319580 | 1 |
| 153 | Plate set | 60319581 | 2 |
| 156 | Bush spherical | 60319582 | 2 |
| 157 | Spring cylinder | 60319583 | 18 |
| 171 | Casing H front | 60319584 | 1 |
| 191 | Gear drive | 60319585 | 1 |
| 192 | Gear driven | 60319586 | 1 |
| 211 | Plate shoe | 60319587 | 2 |
| 251 | Plate swash | 60319588 | 1 |
| 252 | Support s. p. | 60319589 | 1 |
| 261 | Cover front | 60319590 | 1 |
| 262 | Cover | 60319591 | 1 |
| 263 | Cover PTO | 60319592 | 1 |
| 271 | Housing-pump | 60319594 | 1 |
| 312 | Cover valve | 60319595 | 1 |
| 405 | SCREW hex. S. H. C. | 60319597 | 8 |
| 406 | SCREW hex. S. H. C. | 60319598 | 8 |
| 408 | SCREW hex. S. H. C. | 60319599 | 11 |
| 410 | SCREW hex. S. H. C. | 60319601 | 9 |
| 411 | SCREW hex. S. H. C. | 60319602 | 2 |
| 412 | SCREW hex. S. H. C. | 60319603 | 1 |
| 413 | SCREW hex. S. H. C. | 60319604 | 8 |
| 465 | Plug | 60100467 | 6 |
| 466 | PLUG | 60319605 | 2 |
| 467 | Plug | 60008711 | 4 |
| 469 | Plug | 60008712 | 3 |
| 497 | Plug | 60224866 | 6 |
| 530 | ASSY tilting pin | 60319635 | 2 |
| 532 | Plunger, servo | 60075455 | 2 |
| 534 | STOPPER(L) | 60319607 | 2 |
| 535 | STOPPER(S) | 60319608 | 2 |
| 536 | COVER servo | 60319609 | 2 |
| 702 | O-ring | 60050051 | 2 |
| 709 | O RING | 60319610 | 2 |
| 711 | O-ring | 60008695 | 1 |
| 723 | O-ring | 60008708 | 6 |
| 724 | O RING | 60319611 | 6 |
| 725 | O-ring | 60008697 | 6 |
| 728 | O-ring | 60008705 | 3 |
| 729 | O RING | 60319612 | 2 |
| 732 | O-ring | 60050052 | 2 |
| 733 | O RING | 60319613 | 1 |
| 752 | PACKING seat | 60319614 | 2 |
| 774 | Seal,oil | 60314098 | 1 |
| 789 | Ring, retaining | 60075424 | 2 |
| 792 | Ring, retaining | 60075423 | 2 |
| 806 | NUT | 60319615 | 2 |
| 807 | NUT | 60319616 | 2 |
| 824 | RING snap | 60319617 | 2 |
| 825 | RING snap | 60319618 | 2 |
| 826 | RING snap | 60319619 | 2 |
| 827 | RING snap | 60319620 | 1 |
| 828 | RING snap | 60319621 | 1 |
| 829 | RING snap | 60319622 | 1 |
| 830 | RING snap | 60319623 | 1 |
| 885 | Pin | 60075461 | 2 |
| 886 | Pin | 60008878 | 4 |
| 887 | Pin | 60008737 | 1 |
| 888 | PIN | 60319625 | 2 |
| 889 | PIN | 60319626 | 4 |
| 901 | BOLT eye | 60319627 | 2 |
| 953 | SCREW set | 60319628 | 2 |
| 954 | SCREW set | 60319629 | 2 |
