Model：M2X63CHB-13A-85/255
Part NO.:B229900002718

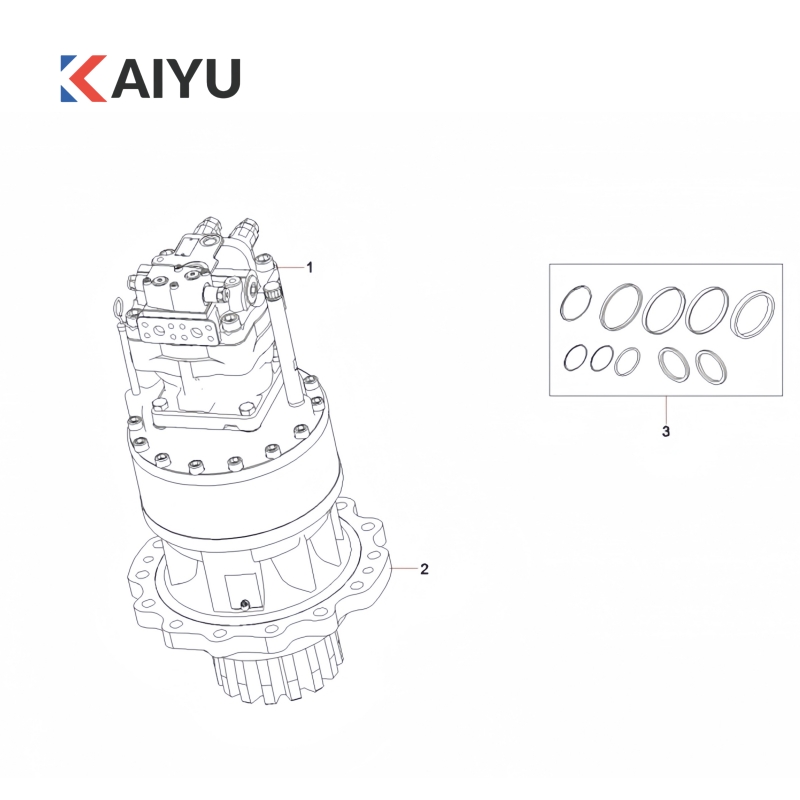

| 1 | Plunger motor | 60181551 | 1 |
| 2 | Reduction Gear | 60181550 | 1 |
| 3 | Repair kit,slewing mechanism | A229900009595 | 1 |

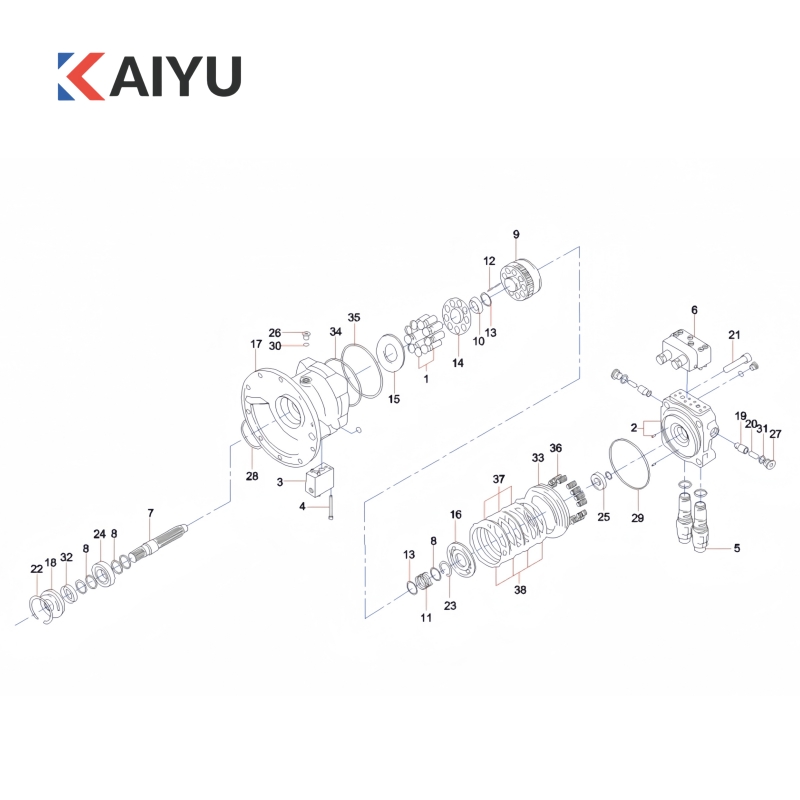

| 1 | Plunger AS | 60038697 | 1 |
| 2 | Plunger | 60038687 | 1 |
| 3 | Valve, timing | 60038112 | 1 |
| 4 | Screw, socket head | 60038566 | 3 |
| 5 | Valve, relief | 60038114 | 2 |
| 6 | Valve GP, anti-reverse | 60038091 | 1 |
| 7 | Shaft, drive | 60038592 | 1 |
| 8 | Gasket | 60038178 | 3 |
| 9 | Block, cylinder | 60038355 | 1 |
| 10 | Sleeve, spherical | 60038586 | 1 |
| 11 | Spring, backward | 60038384 | 1 |
| 12 | Plunger | 60038602 | 12 |
| 13 | Gasket | 60038179 | 2 |
| 14 | Disc, return | 60038386 | 1 |
| 15 | Disc, slipper | 60038380 | 1 |
| 16 | Tray, oil distribution | 60038578 | 1 |
| 17 | Housing | 60038435 | 1 |
| 18 | Cover | 60038018 | 1 |
| 19 | Buckle, slide valve | 60038093 | 2 |
| 20 | Spring | 60038217 | 2 |
| 21 | Bolt | 60038564 | 4 |
| 22 | Ring, clamp | 60038156 | 1 |
| 23 | Ring, clamp | 60038155 | 1 |
| 24 | Bearing, ball | 60038135 | 1 |
| 25 | Bearing, ball | 60038134 | 1 |
| 26 | Plug, oil | 60038646 | 3 |
| 27 | Plug, oil | 60038647 | 2 |
| 28 | Seal, O-ring | 60038709 | 1 |
| 29 | Seal, O-ring | 60038718 | 1 |
| 30 | Seal, O-ring | 60038711 | 3 |
| 31 | Ring, seal | 60038715 | 2 |
| 32 | Seal, oil | 60038866 | 1 |
| 33 | Piston, braking | 60038669 | 1 |
| 34 | Seal, O-ring | 60038717 | 1 |
| 35 | Seal, O-ring | 60038719 | 1 |
| 36 | Spring, retarding | 60038668 | 20 |
| 37 | Plate, friction | 60038548 | 3 |
| 38 | Piece, split | 60038354 | 4 |

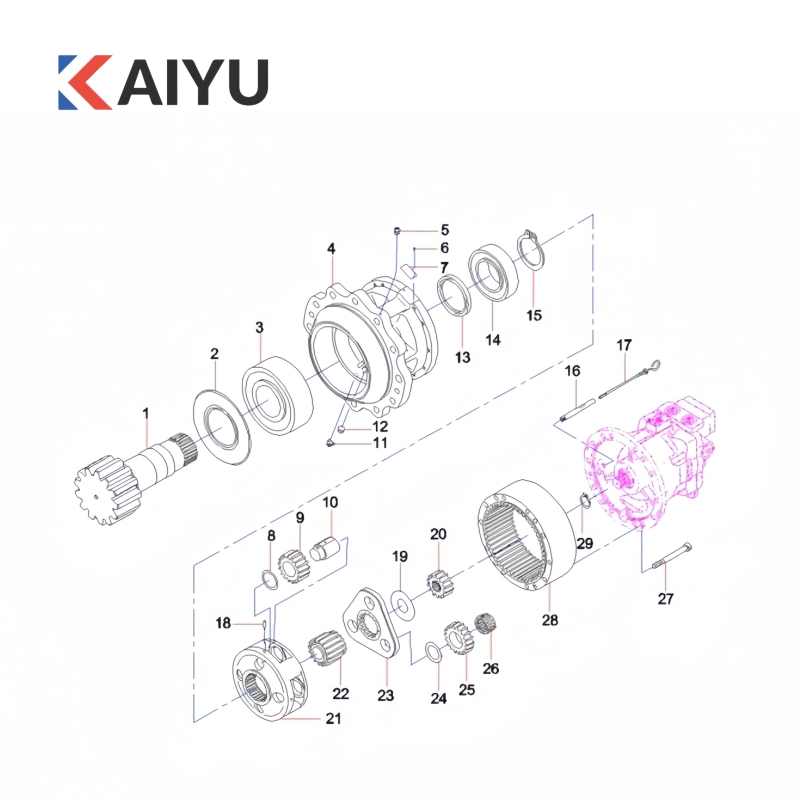

| 1 | Shaft, drive, swing reducer | B229900005915 | 1 |
| 2 | Cover, seal, swing reducer | B229900005914 | 1 |
| 3 | Bearing, roller, swing reducer | B221500000591 | 1 |
| 4 | Housing | 60038440 | 1 |
| 5 | Plug | 60008609 | 1 |
| 6 | Pin | 60038620 | 4 |
| 7 | Nameplate | 60038547 | 2 |
| 8 | Ring, retaining, swing reducer | B229900005907 | 1 |
| 9 | Gear, planetary, swing reducer | B221801000057 | 4 |
| 10 | Roll, pin, swing reducer | B229900005918 | 4 |
| 11 | Fitting, grease | 60008610 | 1 |
| 12 | Plug, PT | 60038163 | 1 |
| 13 | Seal, oil, swing reducer frame | B230101002046 | 1 |
| 14 | Bearing, roller, swing reducer | B221500000592 | 1 |
| 15 | Ring, stop | 60038871 | 1 |
| 16 | Pipe, oil scale, swing reducer | B229900005919 | 1 |
| 17 | Indicator, oil | B229900000269 | 1 |
| 18 | Pin, spring | 60038261 | 4 |
| 19 | Ring, retaining, swing reducer | B229900005905 | 3 |
| 20 | Gear, sun, swing reducer | B221801000054 | 1 |
| 21 | Carrier, planetary | 60038625 | 1 |
| 22 | Gear, sun, swing reducer | B221801000055 | 1 |
| 23 | Carrier, planetary | 60038624 | 1 |
| 24 | Ring, retaining, swing reducer | B229900005906 | 7 |
| 25 | Gear, planetary, swing reducer | B221801000056 | 3 |
| 26 | Nut, lock, swing reducer | B229900005916 | 3 |
| 27 | Screw, hex | 60038451 | 10 |
| 28 | Ring, gear | B229900005522 | 1 |
| 29 | Ring, stop | 60038870 | 1 |
